Granite/Marble Precision Square Boxes: Core Datum Solution for 3D Right-Angle Inspection and Assembly of Solid Parts

Solution Overview

Centered on “3D six-face right-angle precision, multi-face collaborative support, and natural material stability”, this granite/marble precision square box addresses key pain points of traditional metal precision square boxes—including “inconsistent 3D multi-face precision, right-angle deviation due to thermal deformation, rust-induced datum degradation, and difficulty in positioning complex workpieces”. It provides a one-stop 3D right-angle solution covering “3D right-angle inspection of solid parts, 3D positioning of special-shaped components, and datum calibration for measuring tools”.

Leveraging the ultra-low thermal expansion coefficient (granite: 5-8×10⁻⁶/℃; marble: 6-9×10⁻⁶/℃), uniform 3D stress distribution, and excellent vibration resistance (vibration attenuation rate ≥ 85%) of high-density natural stone, it delivers long-term stable 3D right-angle datums for industries such as aerospace, precision molds, and metrology. Key performance indicators include: perpendicularity error ≤ 0.002mm/1000mm, parallelism error ≤ 0.003mm/1000mm, and a precision retention period of 5-8 years. This helps enterprises increase 3D part inspection efficiency by 50% and reduce assembly debugging costs by 60%.

Core Function System

1. 3D Six-Face Precision Right-Angle Datum

• Full-Dimension Right-Angle Precision Assurance: High-density granite (quartz content ≥ 65%, feldspar ≥ 25%, no visible impurities) or high-purity marble (calcium carbonate content ≥ 95%) is processed via a three-stage process: “six-face rough grinding – multi-pass fine grinding – nano-level polishing”. All six faces meet precision datum grades:
• Perpendicularity error: Grade 00 ≤ 0.002mm/1000mm; Grade 0 ≤ 0.003mm/1000mm
• Parallelism error: Grade 00 ≤ 0.003mm/1000mm; Grade 0 ≤ 0.005mm/1000mm
• Surface roughness: Ra ≤ 0.02μm (granite); Ra ≤ 0.05μm (marble)

This solves the “high single-face precision but inconsistent multi-face precision” issue of metal square boxes, providing full-dimension right-angle datums for solid parts (e.g., casings, special-shaped frames).

• Multi-Face Collaborative Inspection Adaptation: All six working faces are interchangeable, enabling simultaneous 3D (length×width×height) right-angle inspection of workpieces (e.g., inspecting front/left/top perpendicularity of casing parts). When paired with dial indicators or micrometers, multiple sets of right-angle deviations can be verified synchronously—eliminating the tedious process of repeatedly flipping workpieces with traditional flat tools. Inspection efficiency is increased by 50%, and secondary errors from workpiece flipping are reduced.
• Optional Precision Scale Integration: Laser-engraved linear scales (line width 0.1mm, spacing accuracy ±0.005mm) or positioning grids can be added to any working face. This supports simultaneous reading of 3D workpiece dimensions (e.g., right-angle dimensions for height/width of special-shaped parts), realizing “right-angle inspection + dimension quantification” integration and boosting data recording accuracy to 99.8%.

2. 3D Workpiece Support and Positioning

• Stable Support for Complex Special-Shaped Parts: The 3D square box structure (standard size range: 50×50×50mm to 800×800×800mm) adapts to 3D support of special-shaped workpieces such as shafts, sleeves, and casings. Full-contact support via “face-to-face” or “face-to-edge” fitting prevents workpiece tilting caused by point support—improving support stability by 80% compared to flat tools. It is especially suitable for inspection and assembly of thin-walled special-shaped parts (e.g., aero-engine blade frames).
• Integrated Precision Positioning Structures: Customizable features on any working face include:
• Positioning holes (φ5-φ20mm, tolerance H6)
• T-slots (slot width 10-30mm, spacing 50-100mm)
• U-slots

When paired with locating pins and clamps, 3D workpiece fixing is achieved with a positioning error ≤ 0.003mm. This solves the “difficult multi-face fixing and low positioning precision” challenge for complex workpieces, supporting standardized inspection of batch parts.

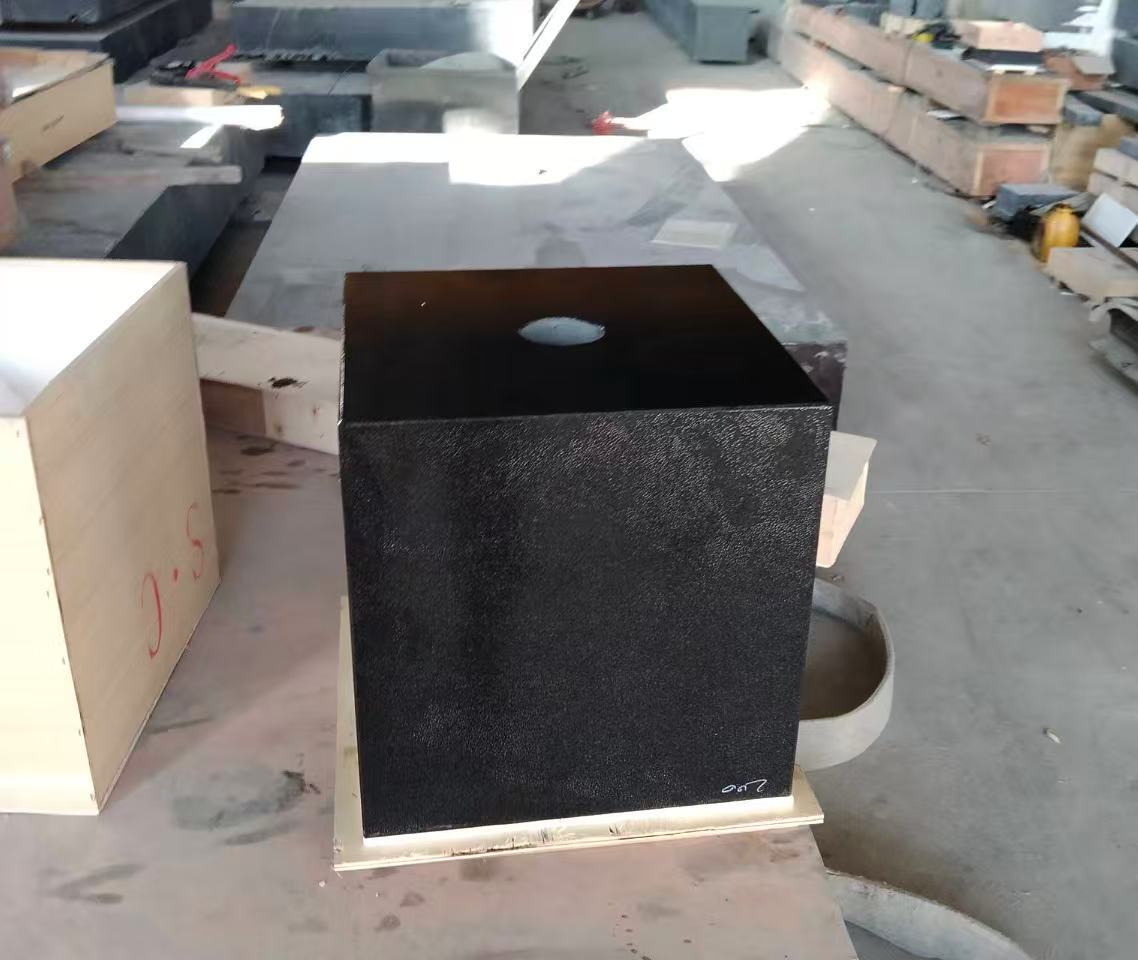

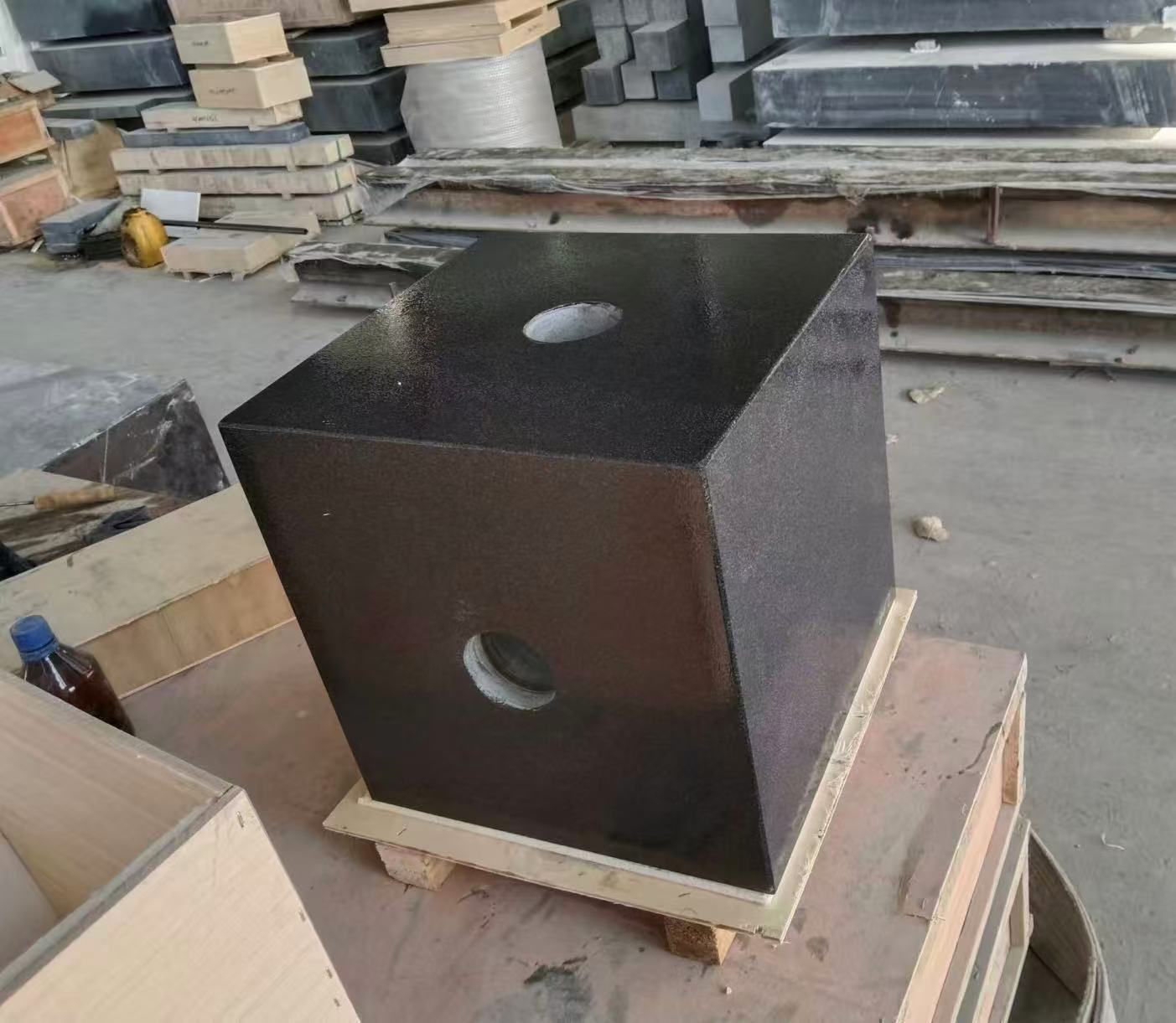

• Optional Weight Reduction and Portability Optimization: For large square boxes (side length ≥ 500mm), weight-reduction holes (20-50mm diameter, no impact on datum precision) can be drilled on non-datum faces—reducing weight by 30% for easier manual handling. Anti-slip rubber pads or adjustable support feet can be added to the bottom, ensuring horizontal placement precision ≤ 0.001mm/m and enhancing inspection stability.

3. 3D Stable Operation in All Environments

• Ultra-Low 3D Thermal Deformation Control: Natural stone has a uniform thermal expansion coefficient, so all six faces of the 3D structure expand/contract synchronously. For a 100mm-side square box, right-angle deviation change is ≤ 0.0005mm when temperature fluctuates by 10℃. This avoids “3D right-angle distortion from local heating” in metal square boxes, making it ideal for temperature-sensitive scenarios such as semiconductor cleanrooms (constant temperature ±1℃) and precision laboratories.
• Efficient 3D Vibration Isolation: The internal damping coefficient of granite/marble is 3-5 times that of cast iron, absorbing multi-directional high-frequency vibrations (50-3000Hz) transmitted from workshop floors and sides. 3D vibration amplitude is reduced from 0.01mm (metal square boxes) to 0.002mm, minimizing vibration interference with multi-face inspection data. Inspection repeatability error is ≤ 0.001mm.
• Full-Surface Corrosion Resistance and Wear Durability: All six faces undergo densification treatment, withstanding industrial reagents such as alcohol, acetone, and cutting fluids—eliminating rust and datum surface corrosion issues of metal square boxes. Surface hardness reaches HS70-80 (granite) and HS55-65 (marble), with wear resistance 2.5 times that of metal square boxes. After long-term use (≥100,000 workpiece contacts), datum surface wear is ≤ 0.001mm, requiring no frequent regrinding.

Core System Composition

Typical Industry Application Cases

1. Aerospace Sector: An aerospace enterprise uses it for multi-face perpendicularity inspection of satellite casing parts (200×200×150mm) — a Grade 00 granite square box (300×300×300mm) is adopted. Six sets of right angles of the casing are inspected simultaneously, with perpendicularity error reduced from ±0.005mm to ±0.001mm. Inspection time is shortened from 2 hours to 40 minutes, and part assembly qualification rate is increased by 35%.
2. Precision Mold Sector: A mold factory uses it for 3D assembly positioning of automotive panel molds (500×400×300mm) — a Grade 0 marble square box (600×600×600mm) is used. Mold components are fixed via T-slots, resulting in post-assembly mold cavity right-angle deviation ≤ 0.002mm. Stamped part dimension qualification rate is increased from 96% to 99.7%, and mold rework costs are reduced by 60%.
3. Metrology Sector: A provincial metrology institute uses it for calibrating 3D right-angle measuring tools (e.g., right-angle gauge sets) — a Grade 00 granite square box (200×200×200mm) is selected. Six-face perpendicularity calibration accuracy reaches 0.0008mm/1000mm, meeting the 3D calibration requirements of JJG 38-2004 “Square Rulers”. Calibration repeatability error is ≤ 0.0005mm, and annual calibration volume is increased by 25%.
4. Semiconductor Equipment Sector: A semiconductor manufacturer uses it for precision inspection of lithography machine stage brackets (150×150×100mm) — a non-magnetic granite square box (200×200×200mm) is adopted. No magnetic interference occurs, and multi-face perpendicularity inspection error of the bracket is ≤ 0.001mm. This ensures the stage meets positioning accuracy requirements, increasing lithography machine yield by 4%.

Core Competitive Advantages

• Consistent 3D Multi-Face Precision: Natural stone has uniform six-face stress. Post-processing perpendicularity and parallelism deviations are ≤ 0.003mm/1000mm — far exceeding metal square boxes (multi-face deviation ≥ 0.008mm/1000mm). This solves the core pain point of “inconsistent multi-face inspection datums” for solid parts.
• Long Precision Retention Period: After 24-36 months of natural aging, 99.5% of 3D stress is eliminated. The precision retention period is 5-8 years (only 1-2 years for metal square boxes), reducing downtime for frequent calibration and saving enterprises over 200 hours of operation and maintenance costs annually.
• Strong Adaptability to Complex Workpieces: The 3D structure + customizable positioning slots/holes adapt to support and positioning of shafts, casings, and special-shaped parts. This eliminates the need for repeated adjustments with flat tools, increasing inspection/assembly efficiency by over 50%.
• Extremely Low Maintenance Costs: No rust prevention is required for the six faces; daily maintenance only involves wiping with a lint-free cloth. Maintenance costs are 1/10 that of metal square boxes (annual maintenance cost of metal square boxes: ~RMB 2,000; stone square boxes: ~RMB 200), reducing total lifecycle costs by 70%.

Full-Dimension Customization Services

Basic Customization

• Size Customization: L×W×H ranges from 50×50×50mm to 1000×1000×1000mm. Super-large sizes support splicing (spliced 3D error ≤ 0.003mm).
• Precision Customization: Grade 00 (highest precision, for metrology/aerospace), Grade 0 (for precision manufacturing), Grade 1 (for general assembly) — selected based on needs.

Functional Extension Customization

• Structural Customization: Machining of positioning holes (φ5-φ20mm), T-slots (10-30mm), U-slots, or weight-reduction holes on any working face; custom 3D special-shaped structures (e.g., stepped square boxes).
• Surface Customization: Ultra-smooth surface treatment (Ra ≤ 0.01μm, for optical inspection), non-magnetic treatment (surface resistance 10⁶-10⁹Ω), laser scale lines (dual units/special markers).

Supporting Service Customization

• Installation and Calibration: On-site 3D level calibration (accuracy ≤ 0.001mm/m) and multi-face perpendicularity verification, with calibration reports issued.
• After-Sales Guarantee: 3-year free warranty, lifelong precision calibration services (1-2 year intervals optional), 24-hour response to quality issues.
• Supporting Procurement: Synchronous customization of special locating pins, clamps, and dust covers — providing a one-stop solution for “square box + auxiliary tools”.
