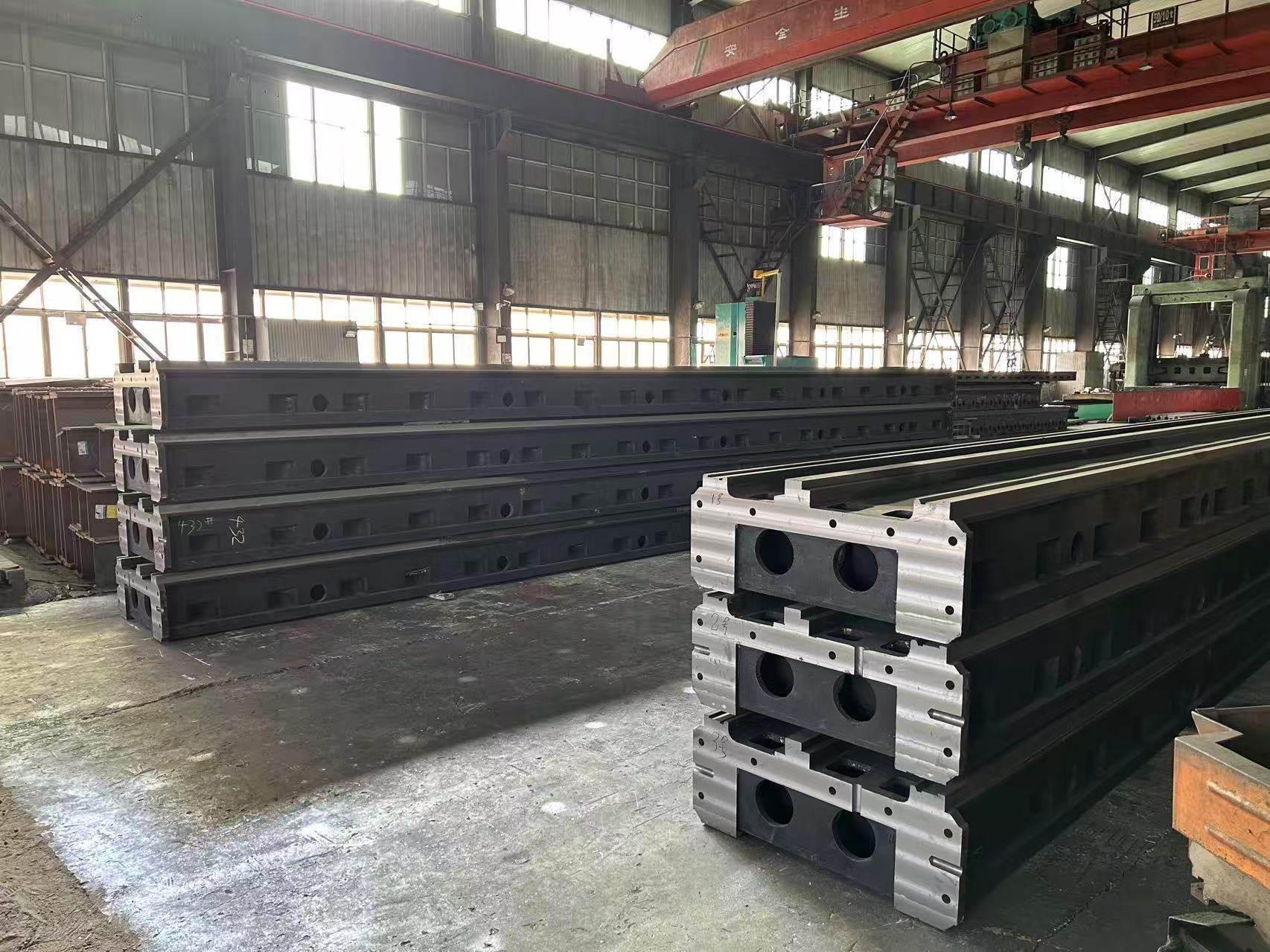

Cast Iron Machine Tool Bed Components (Including Machine Tool Guideways and Base Assemblies): Core System for Machine Tool Motion Precision and Stable Support

Overview of the Solution

This cast iron machine tool bed component (including integrated machine tool guideways and supporting base assemblies) is specially designed for various machine tools such as CNC lathes, vertical/horizontal machining centers, gantry milling machines, and grinding machines. With “synergistic enhancement of bed – guideway – base + high – rigidity cast iron material + precision machining process” as the core, it overcomes the three major pain points of traditional machine tool components: “insufficient bed rigidity leading to easy deformation, rapid guideway wear resulting in precision attenuation, and poor base adaptability making leveling difficult”.

High – strength gray cast iron (HT300 – HT400) and ductile iron (QT500 – 7) are carefully selected. Through the processes of “CNC gantry milling + aging strengthening + guideway precision grinding”, the flatness of the bed is ≤ 0.005mm/1000mm, the straightness of the guideway is ≤ 0.003mm/1000mm, the leveling accuracy of the base is ± 0.001mm/m, the load – bearing capacity of the entire set of components is 10 – 80 tons, and the long – term precision attenuation rate is ≤ 0.05% per year.

It covers industries such as general machinery, automobile manufacturing, mold processing, and aerospace. It helps to improve the machining precision of machine tools by 30%, extend the service life of guideways by 2 times, and shorten the equipment installation and commissioning cycle by 40%.

Core Function System (Focusing on the Synergy of “Bed – Guideway – Base”)

1. Advantages of Cast Iron Materials and Integrated Processes

• Hierarchical Material Selection (Adapting to Different Component Functions):

◦ Bed Body (HT300 – HT400 Gray Cast Iron): The tensile strength is ≥ 300MPa (for HT300), ≥ 350MPa (for HT350), and ≥ 400MPa (for HT400). The hardness ranges from 180 to 260HB. The optimized flake graphite distribution enhances the shock absorption performance (the shock absorption coefficient is 3 – 5 times that of steel). It can absorb high – frequency vibrations generated by the operation of the machine tool spindle (8000 – 20000rpm) and cutting, avoiding machining vibration marks. It is suitable for medium and heavy machine tool beds (such as machining center beds and CNC lathe beds), with a maximum single block size of 6000 × 3000 × 1000mm.

◦ Machine Tool Guideways (HT350 – HT400 / QT500 – 7): They are cast integrally with the bed (or independently precision cast). The HT series focuses on rigidity and shock absorption, while QT500 – 7 (with a tensile strength of ≥ 500MPa and an elongation of ≥ 7%) focuses on wear resistance and impact resistance, making it suitable for high – frequency movement scenarios (such as milling machine slide guideways). The surface of the guideway is quenched (with a hardness of 50 – 55HRC), which improves the wear resistance by 2 times. After long – term use (≥ 200,000 slide movements), the wear amount is ≤ 0.002mm.

◦ Base Assemblies (HT300 / QT500 – 7): The bed support base is made of HT300 for conventional scenarios, and QT500 – 7 (with a load – bearing capacity of ≤ 80 tons) is used for heavy – duty machine tool bases. It focuses on anti – settlement and ground adaptability. Leveling holes and shock absorption installation grooves are reserved at the bottom to ensure the stable horizontal accuracy of the bed.

• Integrated Manufacturing and Aging Processes:

The bed and guideways are manufactured using the “integral casting” method (to avoid precision deviations caused by splicing gaps). The “resin sand molding + step pouring” process is adopted to reduce casting defects (the defect rate is ≤ 0.5%). The entire set of components undergoes 60 – 90 days of natural aging + 2 times of artificial aging (holding at 550 – 600℃ for 6 hours), eliminating more than 99% of internal stress. This prevents bed bending and guideway deformation caused by stress release during long – term use (the deformation is ≤ 0.01mm/m in 10 years), which is far better than that of welded and spliced components (the deformation is ≥ 0.05mm/m in 5 years).

2. Synergistic Functional Design of Bed – Guideway – Base

(1) Bed: Rigid Load – Bearing and Reference Support

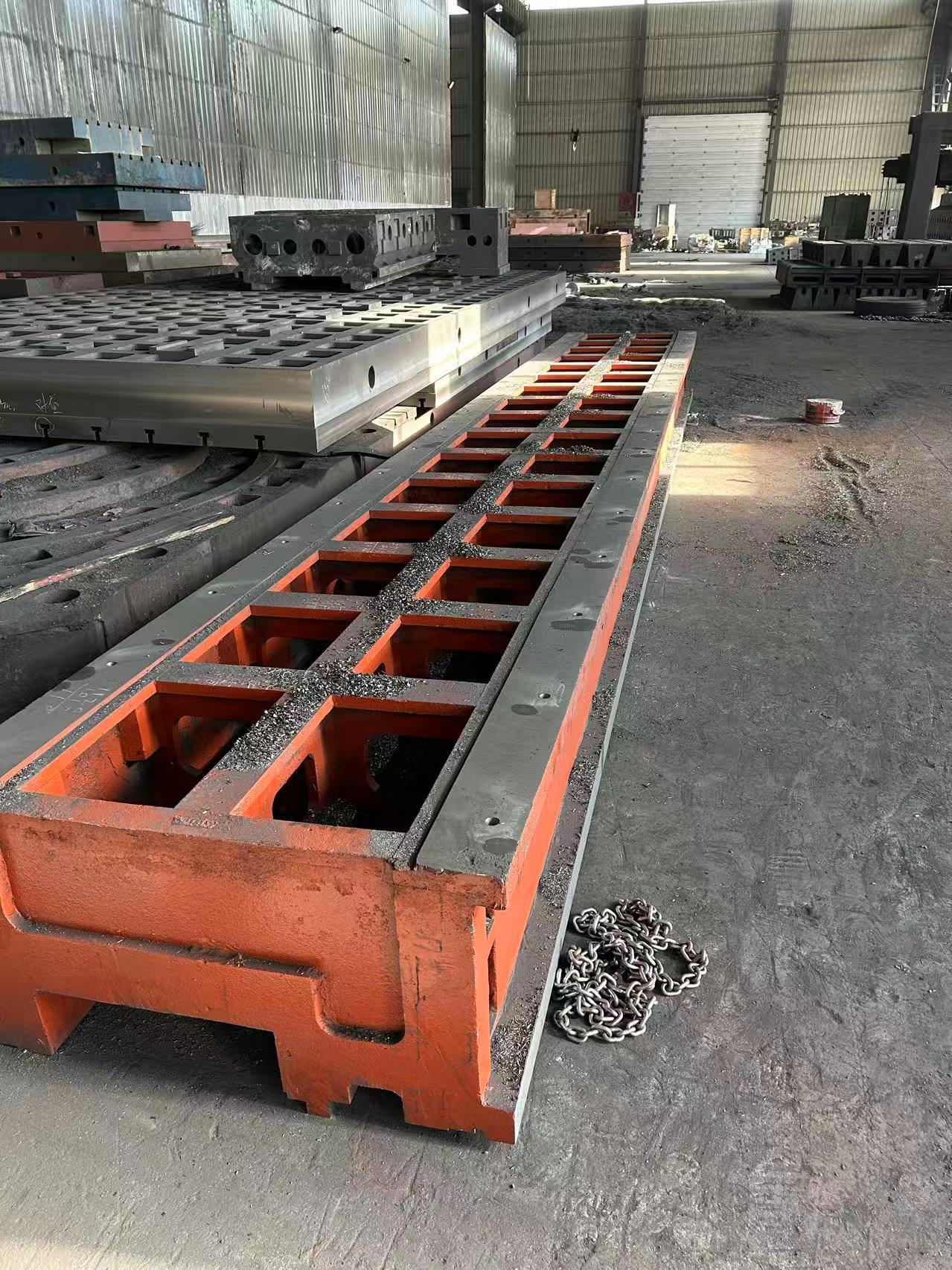

• Box – Type + Rib Reinforcement Structure: The bed adopts a “box – type main cavity + cross / grid ribs” design (the rib spacing is 200 – 400mm, and the wall thickness is 20 – 50mm). For example, for a 4000 × 2000 × 800mm machining center bed, the bending stiffness is increased by 60%. When bearing a 30 – ton workpiece + spindle box for a long time, the deformation amount is ≤ 0.003mm/m, ensuring the stability of the bed as the “reference platform” of the machine tool and avoiding the parallelism deviation between the spindle and the guideway (the deviation is ≤ 0.002mm/1000mm).
• Functional Interface Integration: The bed reserves spindle cooling water channels (with a hole diameter of 15 – 25mm and a flow rate of ≥ 5L/min), chip removal channels (with a cross – section of 100 × 150mm – 300 × 400mm), and grating scale installation grooves (with a width of 15 – 30mm). It is adapted to machine tool heat dissipation, waste treatment, and precision feedback, without the need for secondary processing, reducing assembly errors.

(2) Machine Tool Guideways: Motion Reference and Wear – Resistant Adaptation

• Multi – Type Guideway Cross – Section Design:

◦ Rectangular Guideways: They have strong load – bearing capacity (suitable for heavy – duty slides, such as 50 – ton lathe tool rests). The width of the guideway surface is 50 – 200mm, the straightness is ≤ 0.003mm/1000mm, and the surface roughness is Ra ≤ 1.6μm.

◦ V – Shaped Guideways: They have high guiding accuracy (suitable for precision grinding machines and machining centers). The V – shaped angle is 90° ± 0.01°, the contact area with the slider is ≥ 90%, and the slide movement accuracy is ≤ 0.002mm/1000mm.

◦ Dovetail Guideways: They have a compact structure (suitable for small CNC lathes and milling machines). The dovetail angle is 55°/60°, and the gap can be fine – tuned through inserts, making them suitable for space – constrained scenarios.

• Wear Resistance and Lubrication Optimization: The quenching layer depth of the guideway surface is 2 – 5mm. It is equipped with an automatic lubrication system (the lubricating oil circuit is pre – embedded in the bed), and the lubrication cycle can be set (1 – 2 hours/time). This reduces the friction loss between the guideway and the slider and extends the maintenance – free period of the guideway to more than 1 year.

(3) Base Assemblies: Ground Adaptation and Stable Support

• Multi – Method Leveling and Installation:

◦ Adjustment Pad Iron Base: It is equipped with cast iron adjustment pad irons (with an adjustment range of 0 – 15mm and a load – bearing capacity of ≤ 20 tons/set). The horizontal level of the bed can be fine – tuned through bolts, with an accuracy of ± 0.001mm/m. It is suitable for workshops with general ground flatness (concrete strength ≥ C25).

◦ Shock Absorption Base: For vibration – sensitive machine tools (such as precision grinding machines), rubber – metal composite shock absorption pads (with a shock absorption efficiency of ≥ 85%) are installed at the bottom of the base to isolate ground vibrations (such as the operation of other equipment in the workshop) and ensure that the guideway movement accuracy is not disturbed.

◦ Embedded Base: Heavy – duty machine tools (such as 6 – meter CNC lathes) are equipped with embedded bases, which are fixed to the ground concrete through anchor bolts to enhance the overall stability and prevent the machine tool from settling during long – term use (the settlement amount is ≤ 0.005mm/year).

• Protection and Adaptation Expansion: Guideway dust cover installation grooves are reserved on the side of the base (suitable for guideway dust covers), and positioning pin holes are designed on the top (matched with the spigot at the bottom of the bed, with a positioning error of ≤ 0.005mm). This ensures the accurate docking of the bed and the base and reduces the installation and commissioning time.

3. Full – Working Condition Adaptation and Precision Assurance

• Environmental Adaptability Enhancement:

The surface of the entire set of components adopts a three – layer protection of “sandblasting derusting + epoxy primer + special machine tool topcoat”, which can pass a salt spray test of ≥ 480 hours. It is resistant to cutting fluid and emulsion erosion and can adapt to the humid and oily environment of the machine tool workshop. For high – temperature scenarios (such as machine tools close to heating equipment), a high – temperature resistant coating (with a temperature resistance of ≤ 200℃) can be customized to avoid coating peeling affecting precision.

• Precision Detection and Feedback:

After processing, the bed and guideways are fully inspected using a “coordinate measuring machine (accuracy ± 0.001mm) + laser interferometer” to ensure that the flatness and straightness meet the standards. For some high – end machine models, temperature sensor installation holes can be reserved next to the guideways to monitor the temperature change of the guideways in real time (automatic compensation when the temperature fluctuates by ± 1℃), avoiding precision deviations caused by thermal deformation.

• Adaptation to Multiple Machine Tool Types:

◦ CNC Lathe Bed Components: Made of HT350 material, the bed length is 1500 – 6000mm, and it is equipped with rectangular guideways (with a load – bearing capacity of ≤ 50 tons), suitable for processing shaft parts with a diameter of φ500 – 2000mm.

◦ Vertical Machining Center Bed Components: Made of HT400 material, the bed size is 2000 × 1500 × 800mm, and it is equipped with V – shaped guideways (with a movement accuracy of ≤ 0.002mm/1000mm), suitable for mold and precision part processing.

◦ Gantry Milling Machine Bed Components: The guideway part is made of QT500 – 7 material, the bed span is 3000 – 8000mm, and it is equipped with double rectangular guideways, with a load – bearing capacity of ≤ 80 tons, suitable for processing large workpieces (such as wind power flanges).

Core Composition of the System



Component Category	Core Parameters and Configuration (Enhanced Synergy Characteristics)
Cast Iron Machine Tool Bed	Material: HT300 – HT400 gray cast iron; Size: Length 1500 – 6000mm, Width 800 – 3000mm, Thickness 200 – 1000mm; Precision: Flatness ≤ 0.005mm/1000mm, Perpendicularity to Guideway ≤ 0.002mm/1000mm; Structure: Box – type + cross / grid ribs, reserved cooling water channels, chip removal channels, and grating scale grooves
Machine Tool Guideways (Integrated / Independent)	Material: HT350 – HT400 (integrated), QT500 – 7 (independent); Type: Rectangular / V – shaped / Dovetail; Precision: Straightness ≤ 0.003mm/1000mm, Surface Roughness Ra ≤ 1.6μm (Ra ≤ 0.8μm after quenching); Performance: Quenching Hardness 50 – 55HRC, Wear – Resistant Service Life ≥ 200,000 Movements
Base Assemblies	Material: HT300 (conventional), QT500 – 7 (heavy – duty); Type: Adjustment pad iron type / Shock absorption type / Embedded type; Precision: Leveling Accuracy ± 0.001mm/m, Positioning Error with Bed ≤ 0.005mm; Load – Bearing: 10 – 80 tons (per set), equipped with adjustment bolts, shock absorption pads, and guideway dust cover installation grooves
Auxiliary Accessories	Automatic Lubrication Pump (timed oil supply, flow rate 0.1 – 1L/min); Guideway Dust Cover (bellows type / steel plate type, adapted to guideway stroke); Laser Interferometer Calibration Target (accuracy ± 0.0005mm); Temperature Sensor (accuracy ± 0.1℃, adapted to thermal compensation)

Typical Industry Application Cases

1. Vertical Machining Center Bed Components: Used by a machine tool factory for 850 – type vertical machining centers —— Adopting an HT400 bed (2000 × 1500 × 800mm) + integrated V – shaped guideways (straightness ≤ 0.003mm/1000mm), equipped with a shock absorption base. When processing aluminum alloy molds, the surface roughness is reduced from Ra1.2μm to Ra0.6μm, the mold size tolerance is reduced from ± 0.008mm to ± 0.003mm, the qualification rate is increased by 35%, and the guideway maintenance – free period is extended from 6 months to 18 months.
2. 6m CNC Lathe Bed Components: Used by a heavy industry enterprise for φ2000mm heavy – duty CNC lathes —— Adopting an HT350 bed (6000 × 3000 × 800mm) + QT500 – 7 rectangular guideways (quenching hardness 52HRC), fixed with an embedded base. When bearing a 50 – ton workpiece, the bed deformation amount is ≤ 0.003mm/m. The cylindricity error of processing wind power spindles (φ1800mm) is reduced from ± 0.015mm to ± 0.005mm, and the machine tool precision retention period is extended from 1 year to 3 years.
3. Precision Grinding Machine Bed Components: Used by a precision equipment factory for cylindrical grinding machines —— Adopting an HT350 bed (1500 × 1000 × 600mm) + dovetail guideways (movement accuracy ≤ 0.002mm/1000mm), equipped with a shock absorption base (shock absorption efficiency 85%). When processing bearing inner rings (φ50 – 100mm), the roundness error is reduced from ± 0.003mm to ± 0.001mm, meeting the precision requirements of aviation – grade bearings, and the inspection rework rate is reduced from 8% to 1%.

Core Competitive Advantages

• High Synergistic Precision: The bed and guideways are integrally cast (or accurately docked), avoiding precision deviations caused by splicing gaps. The perpendicularity between the guideway and the bed is ≤ 0.002mm/1000mm, which is far better than that of the “bed + purchased guideway” splicing structure (deviation ≥ 0.008mm/1000mm), ensuring the stable movement precision of the machine tool.
• Balance between Rigidity and Wear Resistance: The HT300 – HT400 bed ensures rigidity and shock absorption, and the QT500 – 7 guideway enhances wear resistance and impact resistance. Combined with quenching treatment, the service life of the guideway is extended by 2 times, solving the contradiction of traditional components between “sufficient rigidity but easy wear” or “wear – resistant but poor shock absorption”.
• Flexible Ground Adaptation: The base assembly supports three installation methods: leveling, shock absorption, and embedding. It has low requirements on ground strength (C25 concrete is sufficient), and the installation cycle is 40% shorter than that of traditional components. No complex ground transformation is required, reducing the equipment deployment cost.
• Significant Cost – Effectiveness: Integrated manufacturing reduces assembly processes, and the cost is 20% lower than that of the “bed + independent guideway + purchased base” combination. Maintenance is simple, and the guideway only needs regular lubrication. The annual maintenance cost is less than 1/3 of that of welded structure components, and the full – life cycle cost is 40% lower.
• Strong Customization Adaptability: It supports the customization of bed size (1500 – 6000mm), guideway type (rectangular / V – shaped / dovetail), and base installation method. The structure can be optimized according to the machine tool model (such as FANUC system lathes and SIEMENS system machining centers), adapting
