1. Application Scenarios & Core Functions
This product is specifically designed for high-precision industrial scenarios, serving as a standard reference surface for critical industrial operations. Its key functions are outlined below:
1.1 Precision Inspection
- Purpose: Used to verify the flatness, parallelism, and surface precision of mechanical components (e.g., machine tool bases, engine parts).
- Advantage: Provides a stable, ultra-flat reference surface for measuring tools such as dial indicators and height gauges, ensuring component quality meets industrial standards.
1.2 Mechanical Assembly
- Purpose: Acts as a fixed, high-precision platform for assembling precision machinery (e.g., gearboxes, CNC machine tool components).
- Advantage: Its stable structure prevents assembly errors caused by uneven surfaces, enhancing the operational stability of finished equipment.
1.3 Marking and Layout
- Purpose: Enables precise marking of processing lines on workpieces (e.g., metal blocks, mechanical housings) prior to machining.
- Advantage: The uniform surface guarantees marking accuracy, reducing deviations in subsequent processing steps.
2. Core Advantages
- Durable Material: Manufactured from high-grade cast iron (HT200-HT300) and treated with heat treatment technology, ensuring excellent wear resistance and superior deformation resistance for long-term stable use.

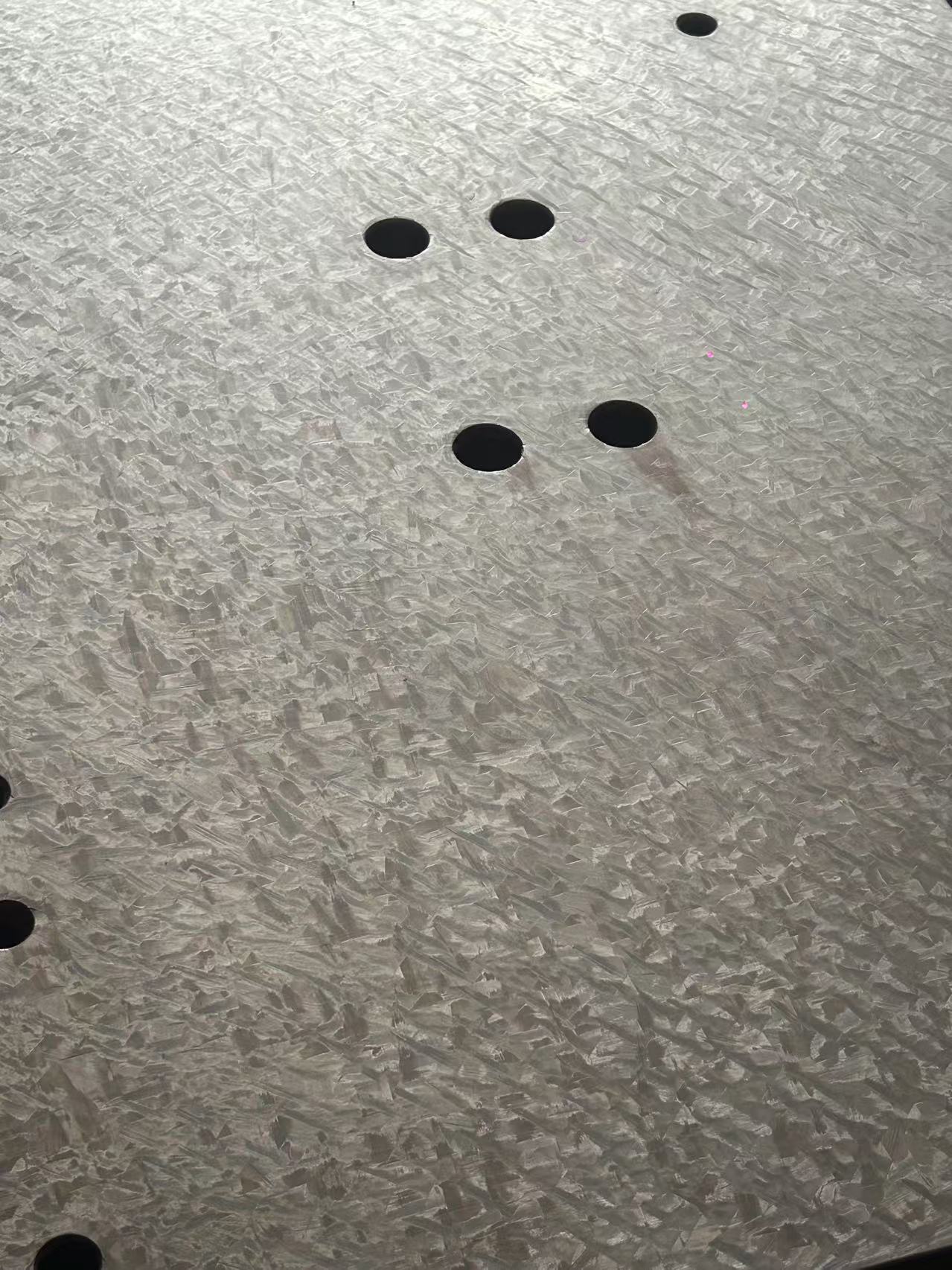

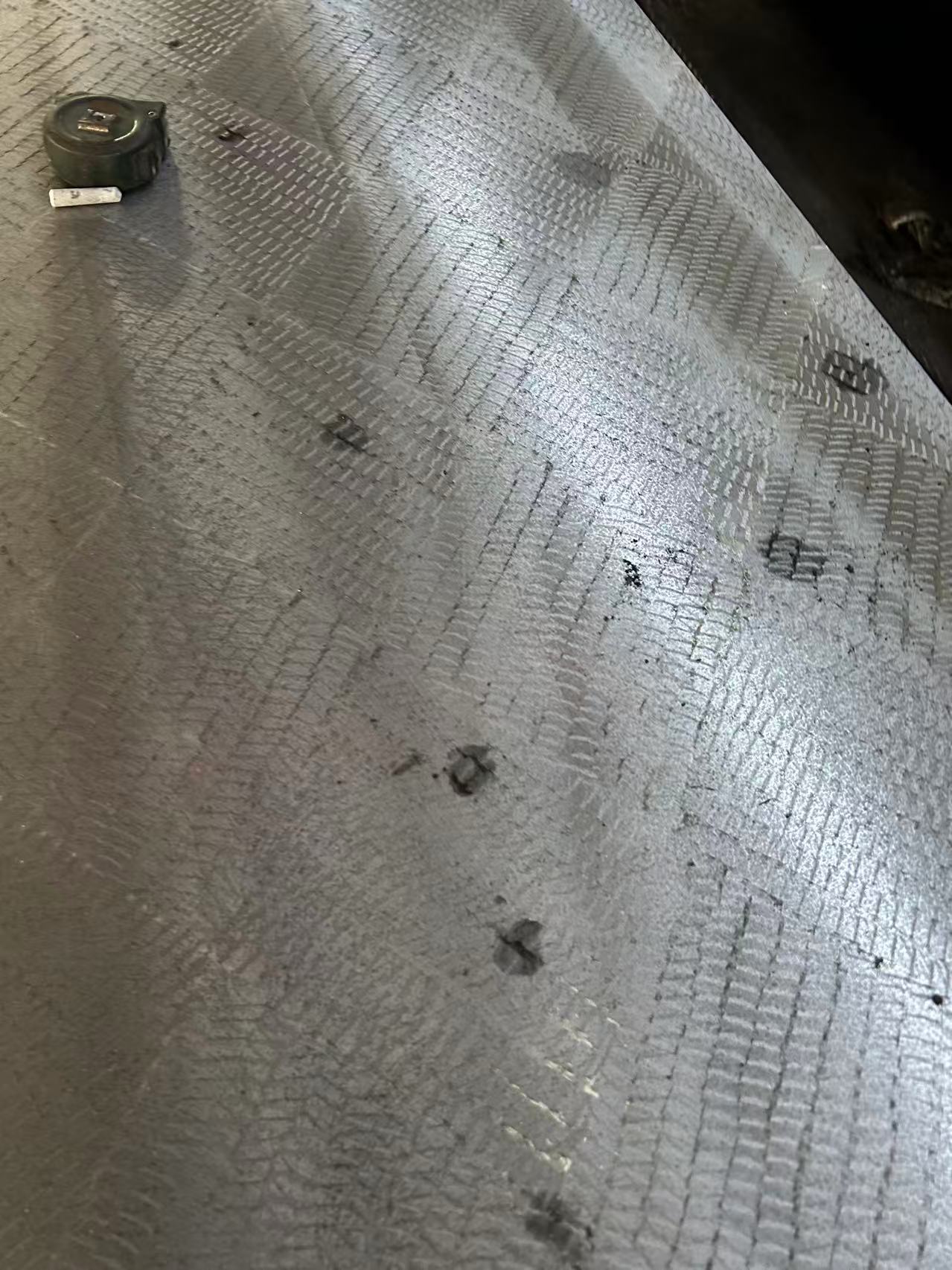

- High-Precision Flatness: Processed via professional scraping technology, with a flatness error of ≤ 0.03mm/m².
- Customizable Sizes:
- Standard sizes available: 500×800mm to 3000×6000mm.
- Custom sizes offered: Tailored to your workshop layout and workpiece dimensions.
3. Customization Notes
- For customization requests: Please provide detailed, specific drawings to ensure product accuracy.
- For special requirements (e.g., slotting, drilling, or custom dimensions including size and thickness): Submit drawings and parameters in advance. Production will commence only after confirmation.
4. Optional Supplementary Material
If you need an English comparison table of key parameters (e.g., size range, flatness tolerance, material grade) for your foreign customers to quickly reference, please confirm the specific parameters to be included, and we can prepare it promptly.
