1. Application Scenarios & Core Functions

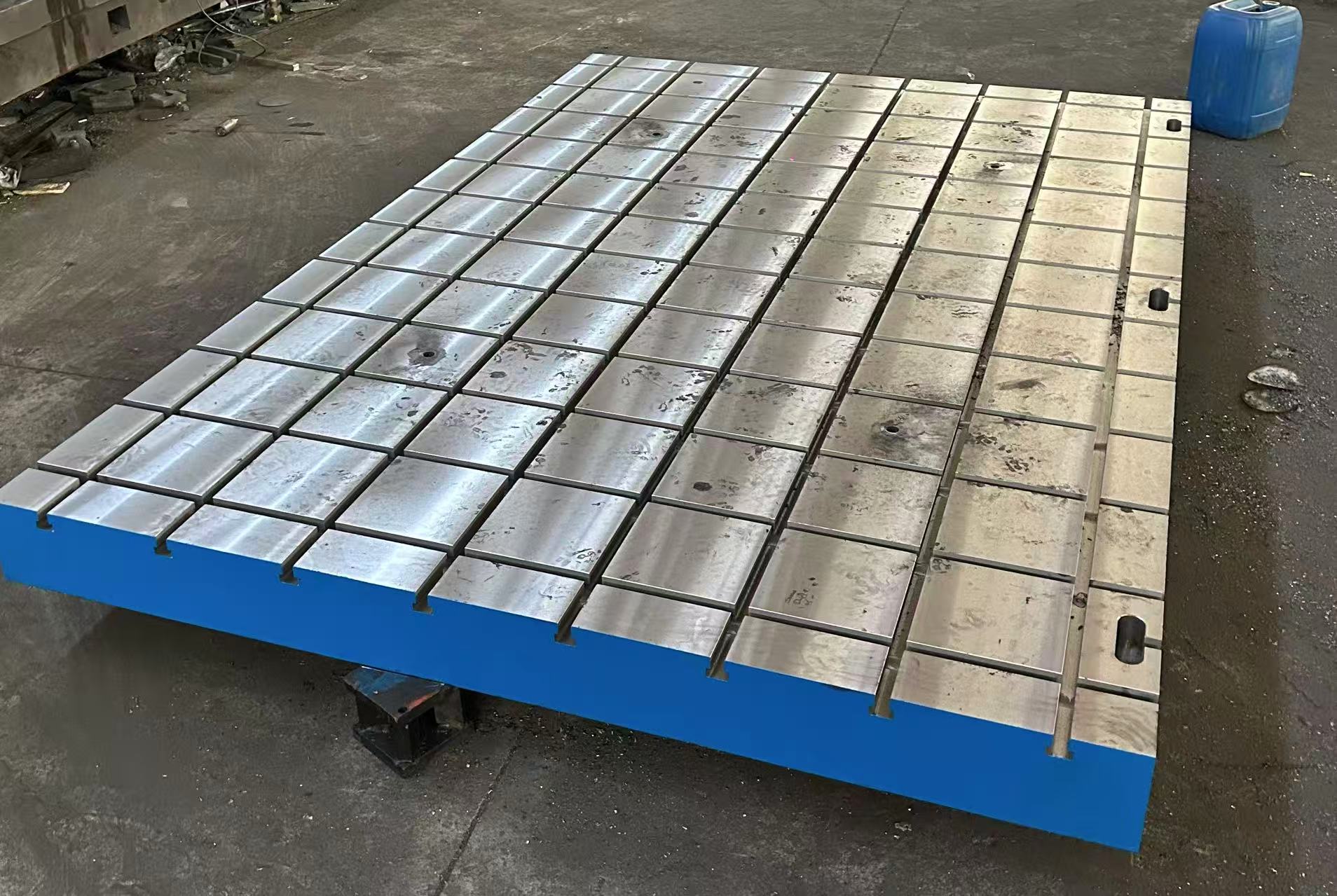

This product is specifically designed for marking operations prior to mechanical processing, serving as a core reference platform for workpiece positioning during manufacturing. Its key functions are outlined below:
1.1 Workpiece Marking & Positioning
- Purpose: Used for marking lines on metal workpieces (e.g., shaft parts, box components, plate workpieces) before processing.
- Operation: Precisely marks processing boundary lines, hole centerlines, and assembly reference lines.
- Advantage: Provides clear positioning guidance for subsequent processing with lathes, milling machines, and drilling machines.
1.2 Adaptation to Multi-Specification Workpieces
- Purpose: Stably supports workpieces of different sizes and weights.
- Compatibility: Suitable for both small precision parts and medium-sized structural components, enabling stable placement and marking on the platform.
- Advantage: Prevents marking deviations caused by workpiece shaking during operation.
1.3 Auxiliary Positioning & Calibration
- Purpose: Assists in calibrating workpiece angles and lengths during marking.
- Operation: Can be used with tools such as try squares, tape measures, and scribers.
- Advantage: Ensures marking positions fully match design drawings, reducing rework in subsequent processing.
2. Core Advantages
- Durable & Damage-Resistant Material:
Manufactured from high-grade cast iron (HT200-HT300) via casting. After aging treatment to eliminate internal stress, it features high surface hardness and wear resistance. No deformation or depression occurs with long-term use, ensuring stable marking precision.
- Flat & Easy-to-Clean Surface:
The platform surface undergoes fine processing, delivering high flatness without obvious unevenness. Residual marks after marking can be easily wiped clean, with no impact on subsequent use. Additionally, the surface is resistant to rust, enabling simple daily maintenance.
- Flexible Size Customization:
- Standard sizes available: 500×800mm to 4000×6000mm.
- Custom sizes offered: Tailored to your workshop space and the size of workpieces frequently processed, meeting diverse production scenario needs.
3. Customization Notes
- For customization requests: Please provide detailed and specific drawings to ensure product accuracy.
- For special requirements (e.g., slotting, drilling, custom size, or thickness): Submit drawings and parameters in advance. Production will commence only after confirmation.
4. Optional Supplementary Material
If you need an English comparison table of key parameters (e.g., size range, material grade, surface flatness tolerance) for your foreign customers to quickly reference, please confirm the specific parameters to be included, and we can prepare it promptly.
